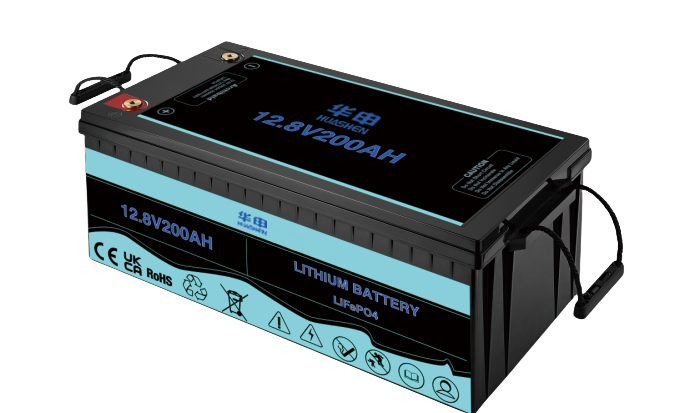

12.8V200Ah
Capacity range: 10-150AH
Nominal voltage: 12V/24V
Voltage range: 12V series 9-12.6V (ternary lithium)
9.2-14.6V (lithium iron phosphate)
24V series 21-29.4V (ternary lithium)
18.4-29.2V (lithium iron phosphate)
Cycle life: 25 ° C environment, 100% charge discharge
500 times of ternary lithium, with the remaining capacity above 60%
Lithium iron phosphate 1200 times, remaining capacity more than 70%
Maximum charging current: 1C5A
Maximum discharge current: 2C5A (ternary lithium)
5-10C5A (lithium iron phosphate)
Self consumption: less than 2% at 25 ± 5 ° C
Applicable ambient temperature: charging - 10-55 ° C
Discharge - 20-65 ° C: (ternary lithium) - 20-75 ° C (lithium iron phosphate)
Recommended operating temperature: 25 ± 5 ° C
Relative humidity: 45% - 75%
+Same quality A electric cell
+High precision imported chip protection circuit
+Special solar energy control system (optional) controller integrated waterproof
+Shell design (rubber shell, aluminum alloy shell)
+Longer service life than lead acid
Solar energy storage, emergency lighting, standby power supply, medical equipment, electric tools
UPS, security alarm system, communication equipment, intelligent robots, electric vehicles, electric toys, etc.
HS lithium battery series | ||||||
Battery model | Core model | Nominal voltage | to configure | electric current | Bare package size | Housing dimensions |
HS 12V-10Ah | Power core 2000&2500 | 11.1V | 3 series 4 parallel or 3 series 5 wells | 6A/10A/15A | 75*75*95 | 147*88*310 |
HS 12V-15Ah | 3 series and 6 parallel | 75*75*120 | 147*88*310 | |||
HS 12V-20Ah | 3 series 8 parallel or 3 series 10 parallel | 75*75*160 | 147*88*310 | |||
HS 12V-25Ah | 3 series and 10 parallel | 75*75*200 | 147*88*310 | |||
HS 12V-30Ah | 3 series 12 parallel or 3 series 15 parallel | 75*75*240 | 147*88*310 | |||
HS 12V-35Ah | 3 series and 14 parallel | 75*75*275 | 147*88*310 | |||
HS 12V-40Ah | 3 series 20 parallel or 3 series 16 parallel | 75*120*148 | 147*88*310 | |||
HS 12V-45Ah | 3 series and 18 parallel | 75*120*348 | 147*88*310 | |||
HS 12V-50Ah | 3 series 20 parallel or 3 series 25 parallel | 75*120 176 | 147*88*310 | |||
HS 12V-55Ah | 3 series and 22 parallel | 75*120*213 | 147*88*310 | |||
HS 12V-60Ah | 3 series 24 parallel or 3 series 30 parallel | 75*120*230 | 147*88*310 | |||
HS 12V-65Ah | 3 series and 26 parallel | 75*120*250 | 147*88*310 | |||
HS 12V-70Ah | 3 series 28 parallel or 3 series 35 parallel | 75*120*270 | 147*88*310 | |||
HS 12V-75Ah | 3 series and 30 parallel | 75*120*285 | 147*88*310 | |||
HS 12V-80Ah | 3 series 32 parallel or 3 series 40 parallel | 75*130*269 | 147*88*310 | |||
HS 12V-10Ah | Digital chip 2000 | 11.1V | 3 series 4 parallel or 3 series 5 wells | 6A/10A/15A | 75*55.5*102.5 | 147*88*310 |
HS 12V-15Ah | 3 series and 6 parallel | 75*55.5*150 | 147*88*310 | |||
HS 12V-20Ah | 3 series 8 parallel or 3 series 10 parallel | 75*55.5*195 | 147*88*310 | |||
HS 12V-25Ah | 3 series and 10 parallel | 75*55.5*250.5 | 147*88*310 | |||
HS 12V-30Ah | 3 series 12 parallel wells or 3 series 15 wells | 75*55.5*287.5 | 147*88*310 | |||
HS 12V-35Ah | 3 series and 14 parallel | 75*111*175.5 | 147*88*310 | |||
HS 12V-40Ah | 3 series 20 parallel or 3 series 16 parallel | 75*111*195 | 147*88*310 | |||
HS 12V-45Ah | 3 series and 18 parallel | 75*111*232 | 147*88*310 | |||
HS 12V-50Ah | 3 series 20 parallel or 3 series 25 parallel | 75*111*250.5 | 147*88*310 | |||
HS 12V-55Ah | 3 series and 22 parallel | 75*111*269 | 147*88*310 | |||
HS 12V-60Ah | 3 series 24 parallel or 3 series 30 parallel | 75*111*287.5 | 147*88*310 | |||
HS 12V-65Ah | 3 series and 26 parallel | 75*130*287.5 | 147*88*310 | |||
HS 12V-70Ah | 3 series 28 parallel or 3 series 35 parallel | 75*130*287.5 | 147*88*310 | |||
HS 12V-75Ah | 3 series and 30 parallel | 75*130*324.5 | 147*88*310 | |||
HS 12V-80Ah | 3 series 32 parallel or 3 series 40 parallel | 75*130*343 | 147*88*310 | |||
HS 12V-20Ah | Lithium iron phosphate 5000 | 12.81V | 4 series and 4 parallel | 6A/10A/15A | 75*142*198 | 147*88*310 |
HS 12V-30Ah | 4 series and 6 parallel | 75*142*264 | 147*88*310 | |||
HS 12V-40Ah | 4 series and 8 parallel | 75*142*264 | 147*88*310 | |||
HS 12V-50Ah | 4 series and 10 parallel | 75*142*330 | 147*88*350 | |||
HS 12V-60Ah | 4 series and 12 parallel | 75*142*396 | 147*88*416 | |||
HS 12V-70Ah | 4 series and 14 parallel | 75*142*462 | 147*88*482 | |||
HS 12V-80Ah | 4 series and 16 parallel | 75*142*530 | 147*88*560 |
