Home > Product > Lithium battery series

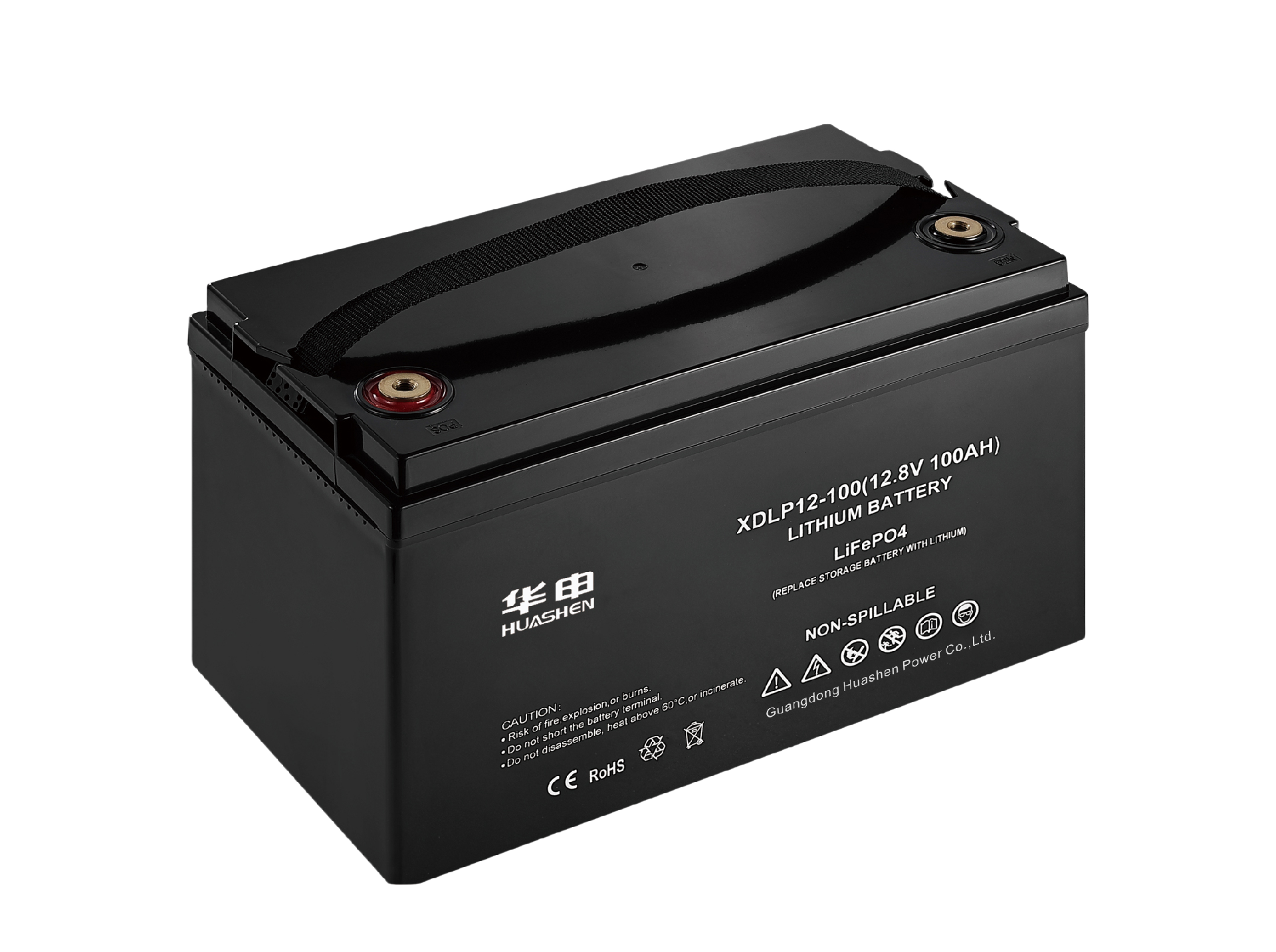

12.8V100Ah

Capacity range: 10-150AH

Nominal voltage: 12V/24V

Voltage range: 12V series 9-12.6V (ternary lithium)

9.2-14.6V (lithium iron phosphate)

24V series 21-29.4V (ternary lithium)

18.4-29.2V (lithium iron phosphate)

Cycle life: 25 ° C environment, 100% charge discharge

500 times of ternary lithium, with the remaining capacity above 60%

Lithium iron phosphate 1200 times, remaining capacity more than 70%

Maximum charging current: 1C5A

Maximum discharge current: 2C5A (ternary lithium)

5-10C5A (lithium iron phosphate)

Self consumption: less than 2% at 25 ± 5 ° C

Applicable ambient temperature: charging - 10-55 ° C

Discharge - 20-65 ° C: (ternary lithium) - 20-75 ° C (lithium iron phosphate)

Recommended operating temperature: 25 ± 5 ° C

Relative humidity: 45% - 75%


  • Design characteristics
  • Application field
  • Specification sheet
  • Graph



+Same quality A electric cell


+High precision imported chip protection circuit


+Special solar energy control system (optional) controller integrated waterproof


+Shell design (rubber shell, aluminum alloy shell)


+Longer service life than lead acid















Solar energy storage, emergency lighting, standby power supply, medical equipment, electric tools


UPS, security alarm system, communication equipment, intelligent robots, electric vehicles, electric toys, etc.














HS lithium battery series
Battery modelCore modelNominal voltageto configureelectric currentBare package sizeHousing dimensions
HS 12V-10Ah

Power core

2000&2500

11.1V3 series 4 parallel or 3 series 5 wells6A/10A/15A75*75*95147*88*310
HS 12V-15Ah3 series and 6 parallel75*75*120147*88*310
HS 12V-20Ah3 series 8 parallel or 3 series 10 parallel75*75*160147*88*310
HS 12V-25Ah3 series and 10 parallel75*75*200147*88*310
HS 12V-30Ah3 series 12 parallel or 3 series 15 parallel75*75*240147*88*310
HS 12V-35Ah3 series and 14 parallel75*75*275147*88*310
HS 12V-40Ah3 series 20 parallel or 3 series 16 parallel75*120*148147*88*310
HS 12V-45Ah3 series and 18 parallel75*120*348147*88*310
HS 12V-50Ah3 series 20 parallel or 3 series 25 parallel75*120 176147*88*310
HS 12V-55Ah3 series and 22 parallel75*120*213147*88*310
HS 12V-60Ah3 series 24 parallel or 3 series 30 parallel75*120*230147*88*310
HS 12V-65Ah3 series and 26 parallel75*120*250147*88*310
HS 12V-70Ah3 series 28 parallel or 3 series 35 parallel75*120*270147*88*310
HS 12V-75Ah3 series and 30 parallel75*120*285147*88*310
HS 12V-80Ah3 series 32 parallel or 3 series 40 parallel75*130*269147*88*310














HS 12V-10Ah

Digital chip

 2000

11.1V3 series 4 parallel or 3 series 5 wells6A/10A/15A75*55.5*102.5147*88*310
HS 12V-15Ah3 series and 6 parallel75*55.5*150147*88*310
HS 12V-20Ah3 series 8 parallel or 3 series 10 parallel75*55.5*195147*88*310
HS 12V-25Ah3 series and 10 parallel75*55.5*250.5147*88*310
HS 12V-30Ah3 series 12 parallel wells or 3 series 15 wells75*55.5*287.5147*88*310
HS 12V-35Ah3 series and 14 parallel75*111*175.5147*88*310
HS 12V-40Ah3 series 20 parallel or 3 series 16 parallel75*111*195147*88*310
HS 12V-45Ah3 series and 18 parallel75*111*232147*88*310
HS 12V-50Ah3 series 20 parallel or 3 series 25 parallel75*111*250.5147*88*310
HS 12V-55Ah3 series and 22 parallel75*111*269147*88*310
HS 12V-60Ah3 series 24 parallel or 3 series 30 parallel75*111*287.5147*88*310
HS 12V-65Ah3 series and 26 parallel75*130*287.5147*88*310
HS 12V-70Ah3 series 28 parallel or 3 series 35 parallel75*130*287.5147*88*310
HS 12V-75Ah3 series and 30 parallel75*130*324.5147*88*310
HS 12V-80Ah3 series 32 parallel or 3 series 40 parallel75*130*343147*88*310














HS 12V-20AhLithium iron phosphate     500012.81V4 series and 4 parallel6A/10A/15A75*142*198147*88*310
HS 12V-30Ah4 series and 6 parallel75*142*264147*88*310
HS 12V-40Ah4 series and 8 parallel75*142*264147*88*310
HS 12V-50Ah4 series and 10 parallel75*142*330147*88*350
HS 12V-60Ah4 series and 12 parallel75*142*396147*88*416
HS 12V-70Ah4 series and 14 parallel75*142*462147*88*482
HS 12V-80Ah4 series and 16 parallel75*142*530147*88*560
